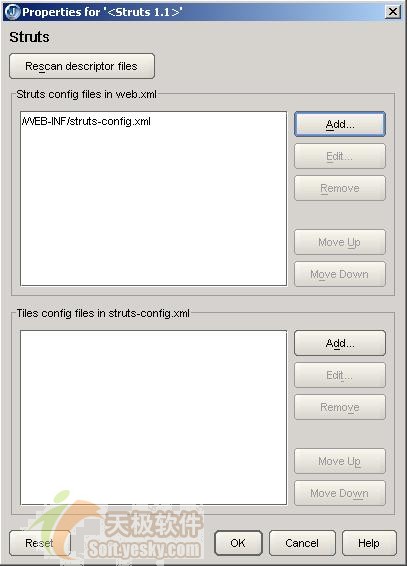

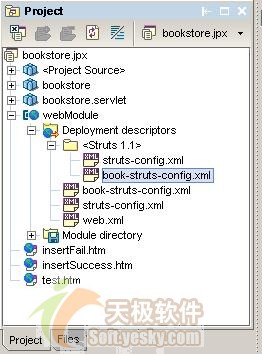

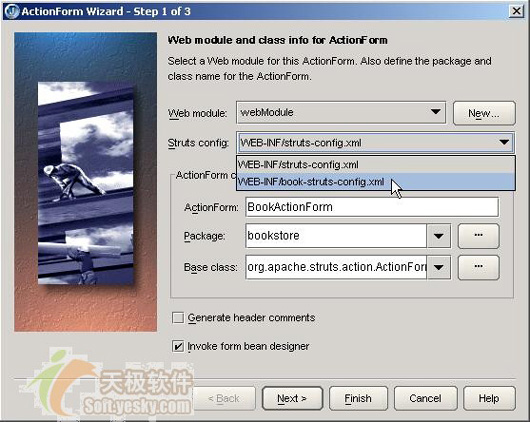

新增一个struts配置文件 考虑到图书模块是一个比较独立的模块,为了避免对struts配置文件的资源争用导致团队工程的覆盖或冲突,我们为这个模块单独提供一个新的struts配置文件,用这个配置文件配置图书模块所有struts关联的信息。 我们按照如下的方式为webmodule模块添加一个名为book-struts-config.xml的配置文件。 首先到<工程目录>/webmodule/web-inf拷贝一个原有的struts-config.xml文件,更名为book-struts-config.xml放在struts-config.xml相同的目录下,删除原有配置的内容,将其调整成: <?xml version="1.0" encoding="utf-8"?> <!doctype struts-config public "-//apache software foundation//dtd struts configuration 1.1//en" "http://jakarta.apache.org/struts/dtds/struts-config_1_1.dtd"> <struts-config> </struts-config> 然后,在工程窗格的资源树中定位到webmodule->deployment descriptors-><struts 1.1>节点上,右击<struts 1.1>节点,在弹出的菜单中选择properties...弹出properties for ’<struts 1.1>’对话框,如图 16所示:  图 16 struts配置文件维护对话框 点击add...按钮,在弹出的choose struts config file对话框中选择book-struts-config.xml配置文件,按ok这个新的struts配置文件将添加到struts config file in web.xml列表中。 新增配置文件成功后,在工程窗格资源树的<struts 1.1>节点下,你将会发现这个新加入的struts配置文件,如下图所示:  图 17 两个struts配置文件 这样,在创建新的formbean或action时,你就可以选择用哪个配置文件来保存struts的配置信息了。 图书action form 下面我们着手创建用于接收新增图书页面表单数据的bookactionform,使用book-struts-config.xml保存bookactionform的配置信息。bookactionform需要进行数据有效性自检,也就是说,要让bookactionform实现validate()方法。 创建bookactionform和创建useractionform相似,但是在向导的第1步需要指定book-struts-config.xml记录bookactionform配置信息,如图 18所示:  图 18 选择不同的配置文件 我们在前一节为web模块添加了一个配置文件,在struts config下拉框中列出了web模块所有配置文件,这里我们选择web-inf/book-struts-config.xml。 在向导的第2步,我们为bookactionform定义下列5个属性: string bookid;//图书id,对应t_book表的book_id,是主键。 string isbn;//isbn string createdate;//创建日期 string bookname;//书名 string author;//作者 在向导的第2步直接按finish创建bookactionform。由于bookid属性是主键,所以不能和t_book中已有的记录重复,这可以通过bookactionform的数据自检机制来完成,数据自检是通过定义validate()方法来实现的。向导已经为bookactionform生成了validate()方法框架,我们只需要在validate()方法编写bookid的校验的代码就可以了,bookactionform的最终代码如代码清单 10所示: 代码清单 10 bookactionform.java 1. package bookstore; 2. 3. import javax.servlet.http.httpservletrequest; 4. import org.apache.struts.action.*; 5. import java.sql.*; 6. 7. public class bookactionform 8. extends actionform { 9. … 10. public actionerrors validate(actionmapping actionmapping, 11. httpservletrequest httpservletrequest) { 12. actionerrors errors = new actionerrors(); 13. connection conn = null; 14. try { 15. conn = dbconnection.getconnection(); 16. preparedstatement pstat = conn.preparestatement( 17. "select count(*) count from t_book where book_id=?"); 18. pstat.setstring(1, this.bookid); 19. resultset rs = pstat.executequery(); 20. if (rs.next()&& rs.getint(1) > 0) { 21. errors.add("bookid ", 22. new actionmessage("bookstore.duplicate.bookid", 23. "图书id和数据库中已经有的id重复")); 24. } 25. } 26. catch (sqlexception se) { 27. se.printstacktrace(); 28. errors.add("bookid", 29. new actionmessage("bookstore.dbaccess.error", "访问数据库时出错")); 30. } 31. finally { 32. try { 33. if (conn != null) { 34. conn.close(); 35. } 36. } 37. catch (sqlexception ex) { 38. ex.printstacktrace(); 39. errors.add("bookid", 40. new actionmessage("bookstore.dbaccess.error", 41. "访问数据库时出错")); 42. } 43. } 44. return errors; 45. } 46. 47. public void reset(actionmapping actionmapping, 48. httpservletrequest servletrequest) { 49. this.createdate = getcurrdatestr(); 50. } 51. 52. //获取当前时间字符 53. private static string getcurrdatestr() { 54. simpledateformat sdf = new simpledateformat("yyyymmdd"); 55. return sdf.format(new date()); 56. } 57. } 当用户提交表单后,struts框架自动把表单数据填充到actionform中,接着struts框架自动调用actionform的validate()方法进行数据验证。如果validate()方法返回的actionerrors为null或不包含任何actionmessage对象,表示通过验证,struts框架将actionform和http请求一起传给action的execute(),否则struts框架将http请求返回到输入的页面中,而输入页面即可通过<html:errors>显示对应request域中的actionerrors错误信息显示出来。 此外,我们在reset()方法中将createdate属性置为当前的日期,因为这个属性值不是通过页面表单提供的。 新增图书jsp页面 1.通过向导创建bookadd.jsp 通过jsp向导创建bookadd.jsp页面,在向导的第2步选择使用struts1.1的struts-bean和struts-html标签,如图 19所示:  图 19 指定选用struts标签 2.使用jbuilder的struts标签构建jsp页面 你可以直接用拖拽的方法从jbuilder编辑器左边的标签库将struts标签添加到jsp页面中,如图 20所示:  图 20 用拖拽的方式添加struts标签 struts的html标签可以完成和标准的html元素相同的功能,struts提倡使用struts html标签库,因为这些标签可以和struts框架的其他组件紧密地联系起来。而strtus的bean标签库可以访问已经存在的javabean及其属性,有一些bean标签还可以访问http请求头信息及web资源文件的信息。 我们希望用struts的html标签库创建添加图书的表单,通过bean标签库访问web资源文件作为表单组件前的标识文字。 bookadd.jsp的最终代码如代码清单 11所示: 代码清单 11 bookadd.jsp 1. <%@page contenttype="text/html; charset=gbk" %> 2. <%@taglib uri="/web-inf/struts-bean.tld" prefix="bean"%> 3. <%@taglib uri="/web-inf/struts-html.tld" prefix="html"%> 4. <html> 5. <head> 6. <title>bookinsert</title> 7. <script language="javascript" > 8. function mysubmit(form) 9. { 10. if(form.isbn.value == null || form.isbn.value == "") 11. { 12. alert("图书的isbn不允许为空"); 13. return false; 14. } 15. if(form.bookname.value == null || form.bookname.value == "") 16. { 17. alert("图书名不允许为空"); 18. return false; 19. } 20. } 21. </script> 22. </head> 23. <body bgcolor="#ffffff"> 24. <html:errors/> 25. <html:form action="/bookinsertaction.do" focus="bookid" method="post" 26. onsubmit="return mysubmit(this)" > 27. <table width="100%%" border="0"> 28. <tr> 29. <td> 30. <bean:message bundle="bookstore" key="bookstore.bookid"/> 31. </td> 32. <td> 33. <html:text name="bookactionform" property="bookid"/> 3
|
|
