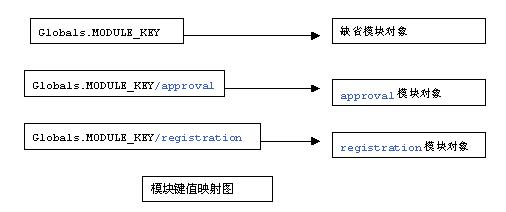

4、模块定义 通过上面对struts的模块化机制的讲解,我们现在可以开始实现我们的模块化例子程序了。 4.1 actionservlet参数 我们在struts的web.xml中定义模块。下面的代码定义了三个模块:缺省模块,approval和registration模块,前缀分别是””,/approval和/registration。 action org.apache.struts.action.actionservlet config /web-inf/struts-config.xml config/approval /web-inf/struts-config-approval.xml config/registration /web-inf/struts-config-registration.xml 1 action *.do 这样在初始化actionservlet的过程中,servletcontext的属性中就会有这样的属性键/值关系:  4.2 approval模块配置文件 下面是approval模块的配置文件,定义了form和action,以及相应的forward。 dtd struts configuration 1.1//en" "http://jakarta.apache.org/struts/dtds/struts-config_1_1.dtd"> attribute="approvalform" name="approvalform" input="/index.jsp" path="/approval" scope="request" type="com.i505.struts.approval.action.approvalaction"> 4.3 registration模块配置文件 下面是registration模块的配置文件,定义了form和action,以及相应的message-resources和forward。 dtd struts configuration 1.1//en" "http://jakarta.apache.org/struts/dtds/struts-config_1_1.dtd"> attribute="registrationform" input="/index.jsp" name="registrationform" path="/registration" type="com.i505.struts.registration.action.registrationaction"> 5、模块选择 本节主要讲述struts中如何选择模块,实现模块的真正运作的。 5.1 action的模块选择 当我们在浏览器中使用http://hostaddress/contextpath/module/action.do式样的的url时,actionservlet会根据module选择模块对象,下面是actionservlet处理http请求的代码: protected void process(httpservletrequest request, httpservletresponse response) throws ioexception, servletexception { requestutils.selectmodule(request, getservletcontext()); getrequestprocessor(getmoduleconfig(request)).process (request, response); } requestutils.selectmodule函数将使用下面的代码把url中的模块前缀(下面代码的prefix将代表上面url式样中的/module)指定的模块对象保存在request属性中,这个模块对象就成了处理这个请求的当前模块对象: // expose the resources for this module moduleconfig config = (moduleconfig) context.getattribute(globals.module_key + prefix); if (config != null) { request.setattribute(globals.module_key, config); } else { request.removeattribute(globals.module_key); } 5.2 资源的模块化 资源(比如jsp)的模块化是指资源可以按照模块一样来组织,比如approval模块的资源可以放在approval目录下,而registration模块的资源则放在registration目录下,缺省模块的资源放在webroot下。 url访问这些资源很简单,url式样是 http://hostaddress/contextpath/module/xxx.jsp。对于input和forward访问这些资源,我们只需直接写相对于模块路径下的路径,注意它们必须以”/”开头。如果forward是相对servletcontext的,则要加上模块路径。 attribute="registrationform" input="/index.jsp" name="registrationform" path="/registration" type="com.i505.struts.registration.action.registrationaction"> 5.3 formtag中表单action url的生成 对于模块编程,struts在formtag的action属性好像有些问题,这些问题出现在struts没有考虑直接访问jsp时的情况。应为forward和直接访问这两种环境是不同的,主要是直接访问这些jsp,request属性中没有模块对象,而forward访问这些jsp时request属性中有模块对象。我们需要修改代码,使得在产生action属性时不受jsp所在环境的影响,也就是我们将在formtag的action属性中指定模块,而不是request中得到模块。下面是registration模块的index.jsp的代码,它的formtag的action属性包括了模块的前缀/registration: <%@ taglib uri="/web-inf/struts-bean.tld" prefix="bean"%> <%@ taglib uri="/web-inf/struts-html.tld" prefix="html"%> 申请注册 <%@ page contenttype="text/html;charset=gb2312" %> 姓名:
